Notice: Customers should take care of the clearance and customs duties.
Parameter Table:
LED Type: SPI IC chip LED strip+PWM LED strip.

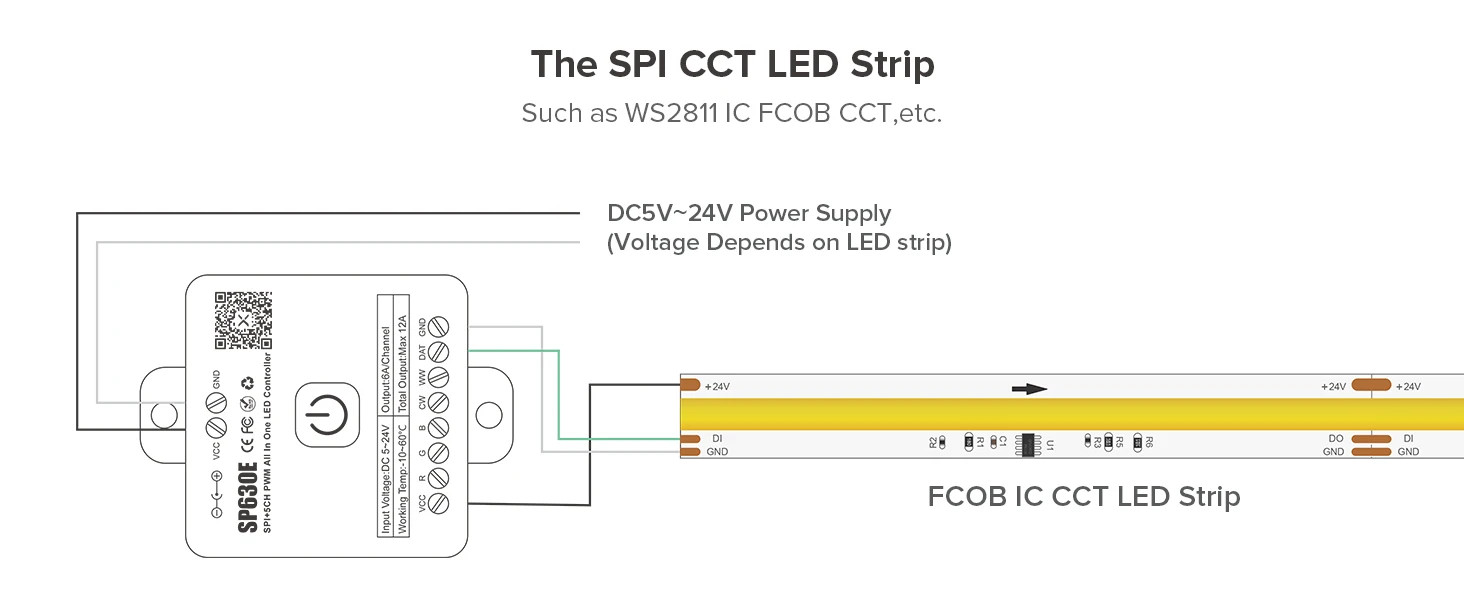

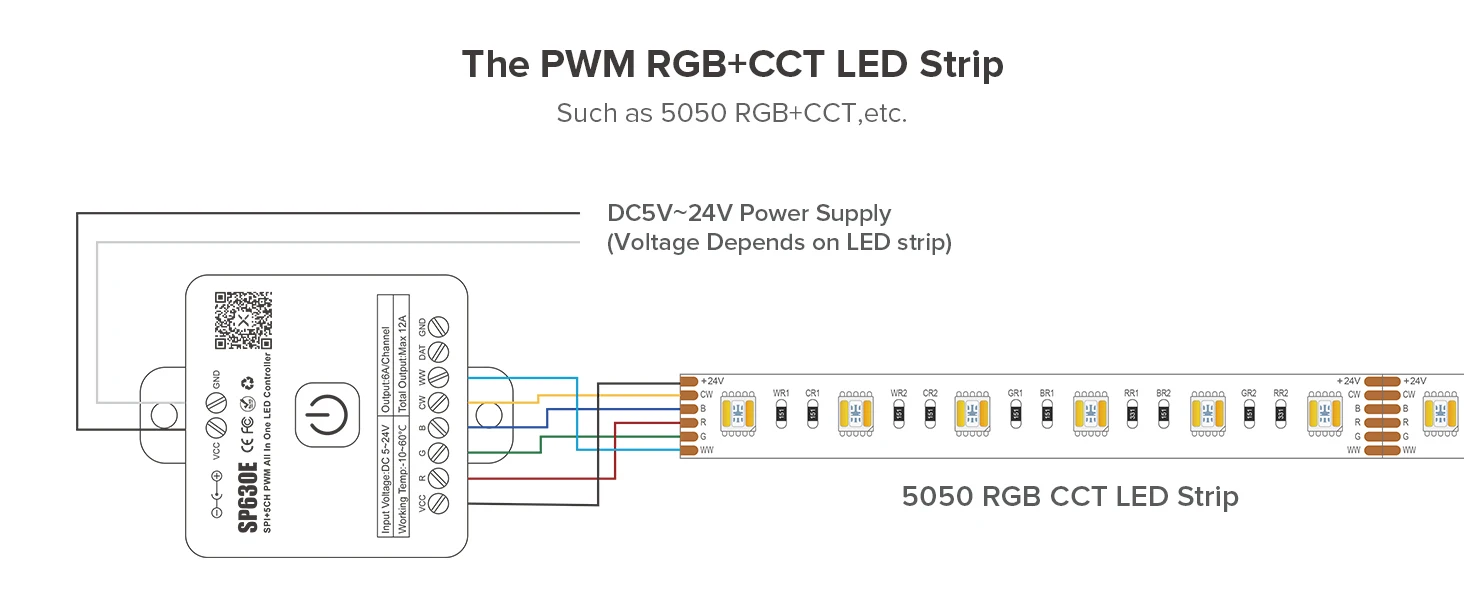

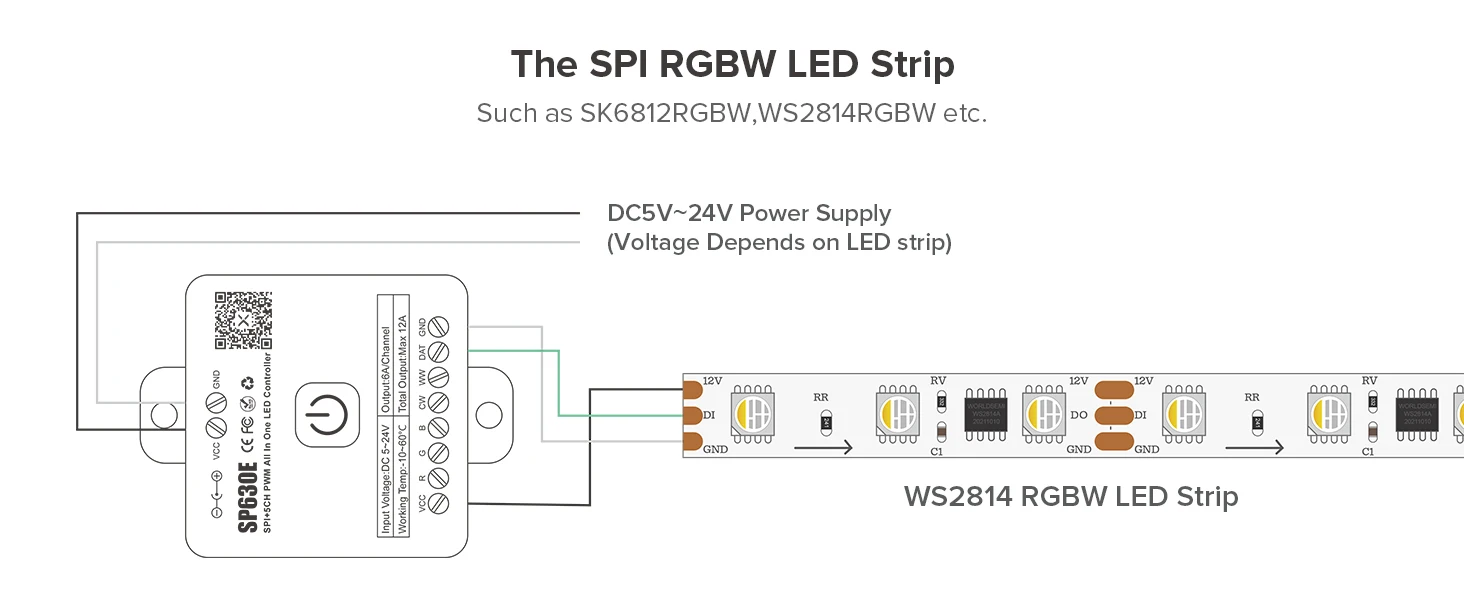

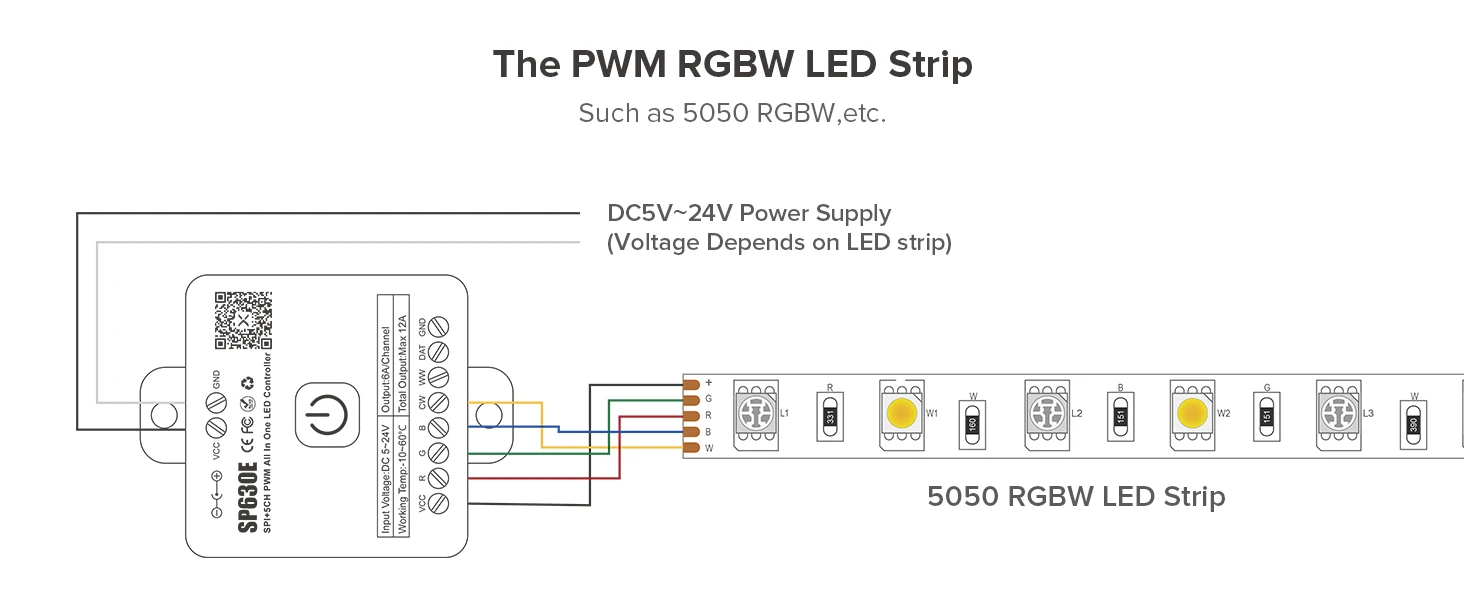

Input Voltage: DC5V-DC24V Controller voltage depends on LED strip.

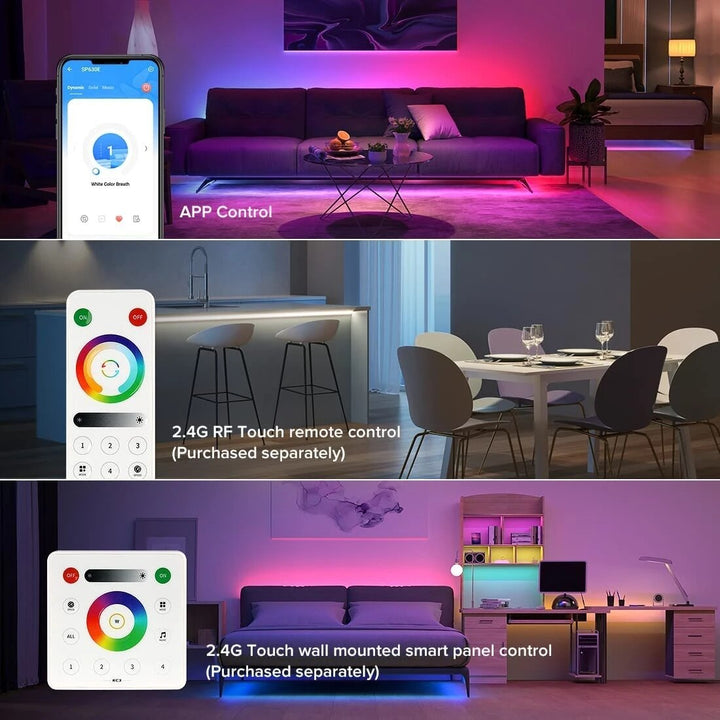

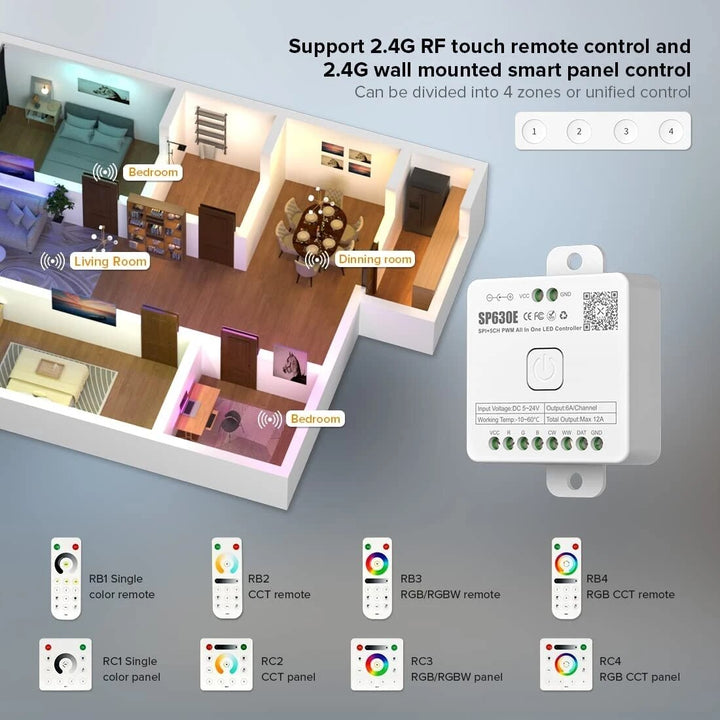

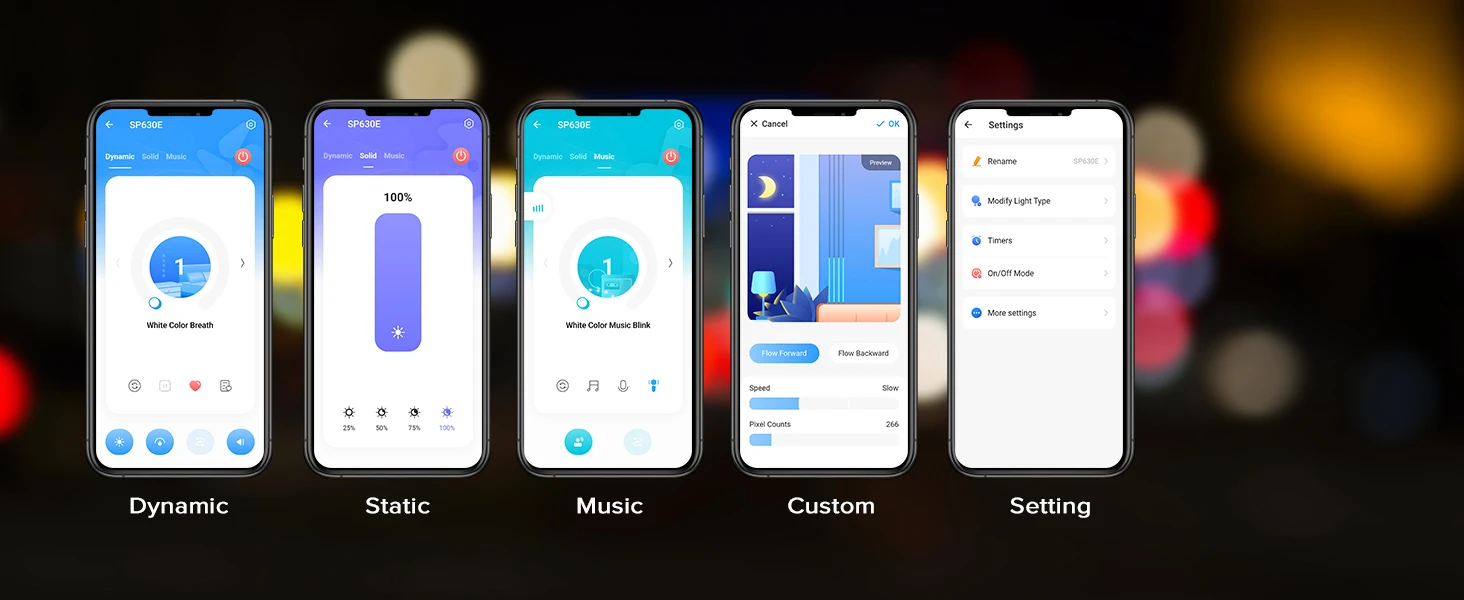

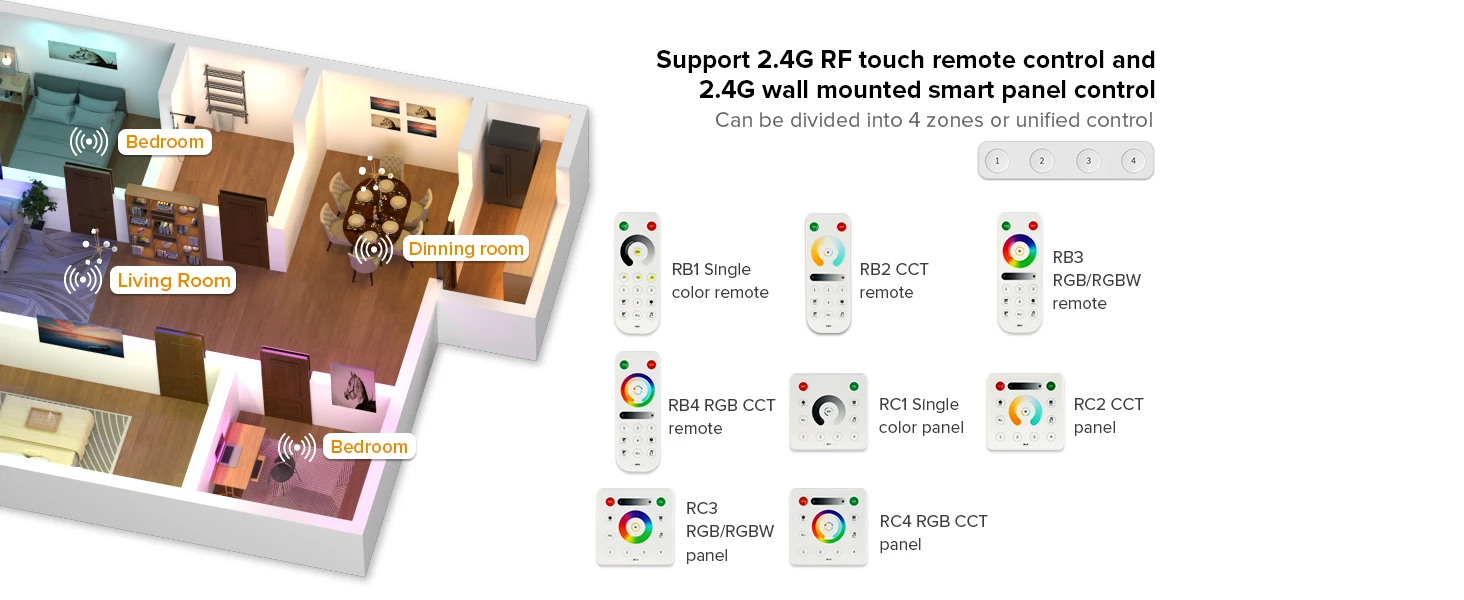

Ways of Working: Match with RF remote ,Bluetooth APP BalanX.
Support IC QTY: Single color ,CCT , RGB: 600 IC max . RGBW :450 IC max . RGBCCT : 300 IC max.
On/Off Animations: Set on/off animations and the default power-on state..
Modify: Device name, color order correction.

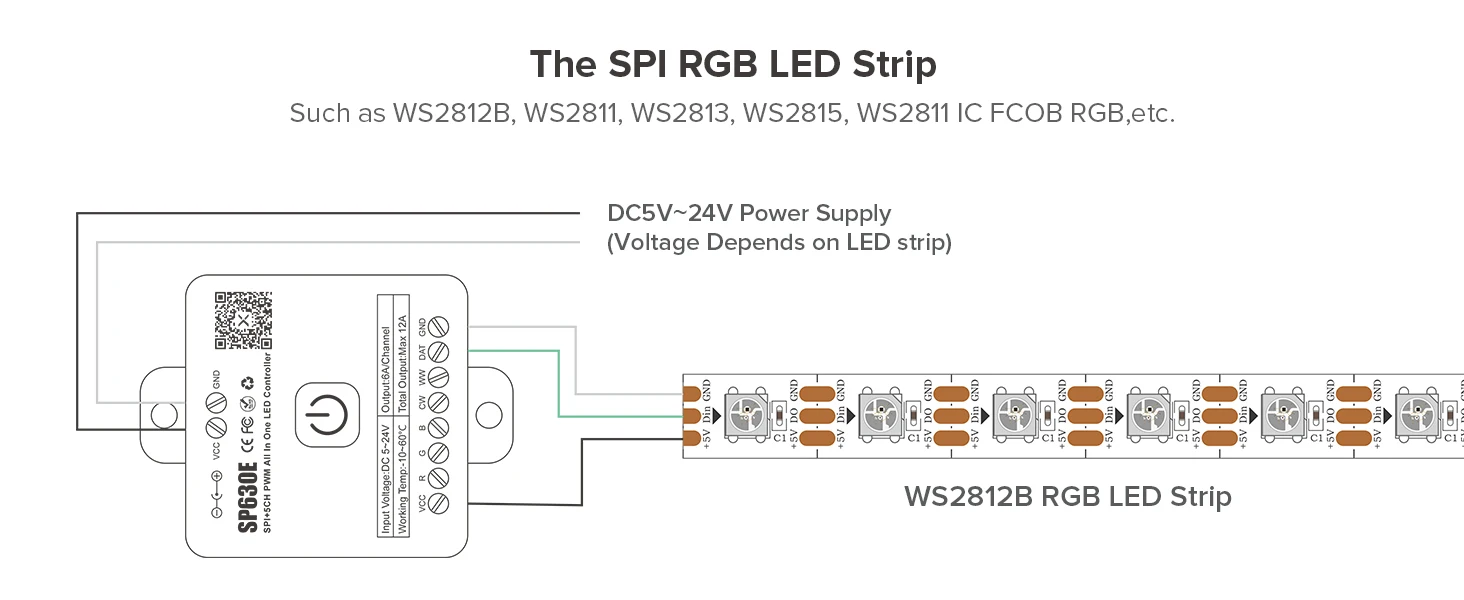

Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.

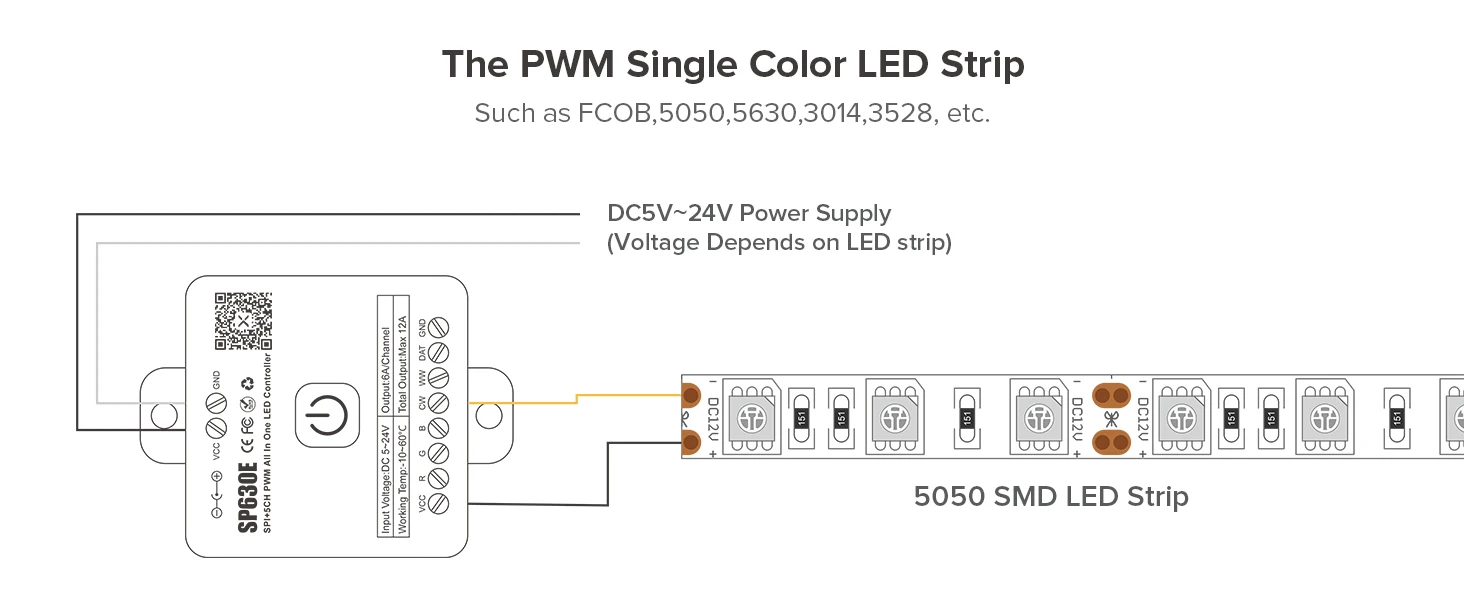

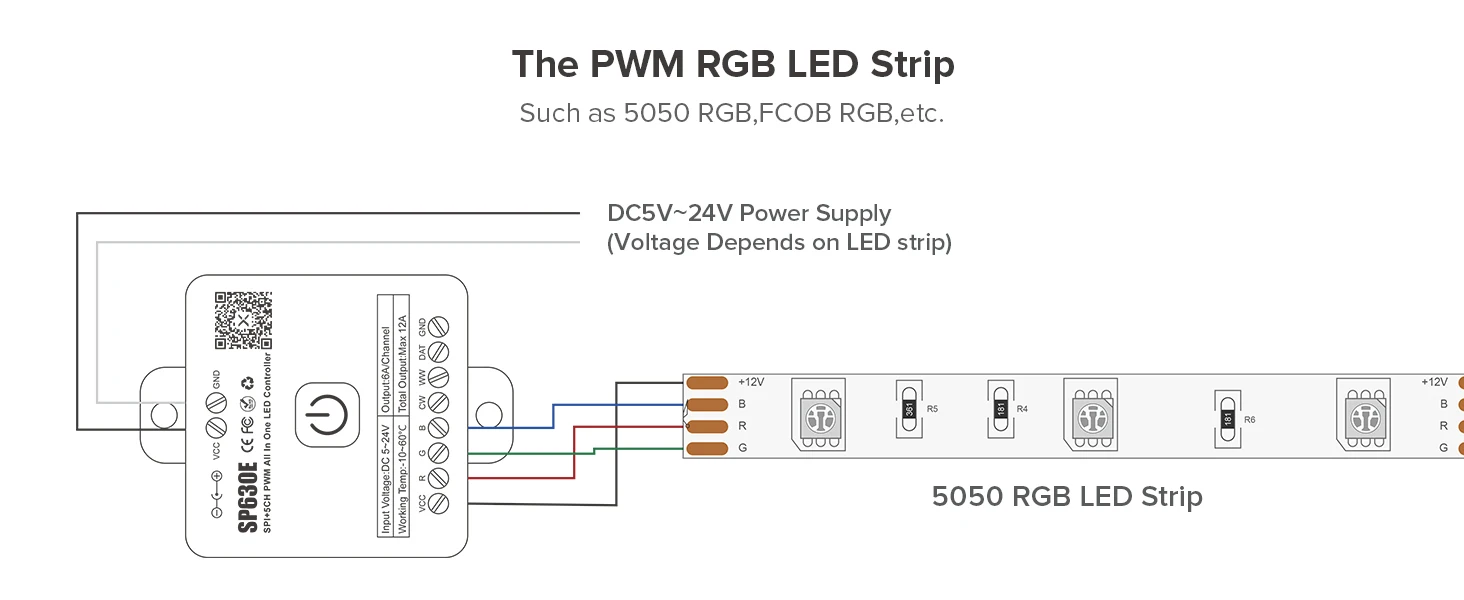

Support PWM Chip No IC: FCOB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).
Waterproof Level: IP30 Non-waterproof.
Operation Temperature: -4℉~140℉ ( -20℃~+60℃ ).

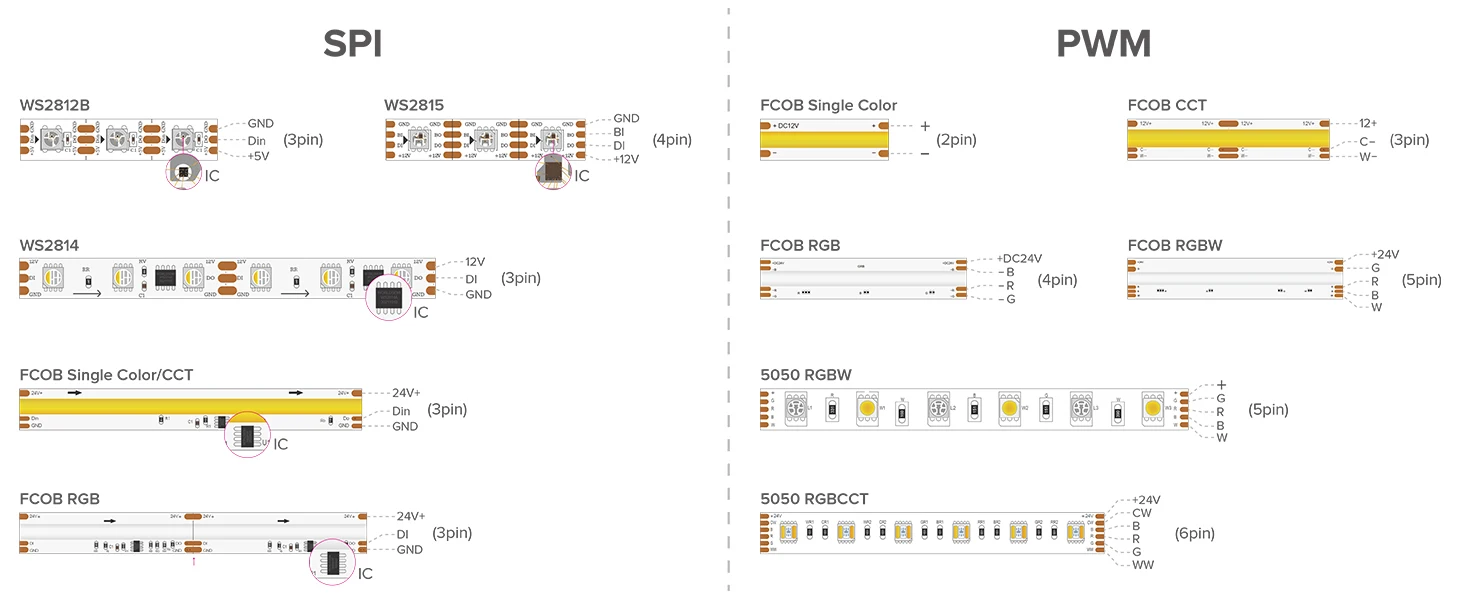

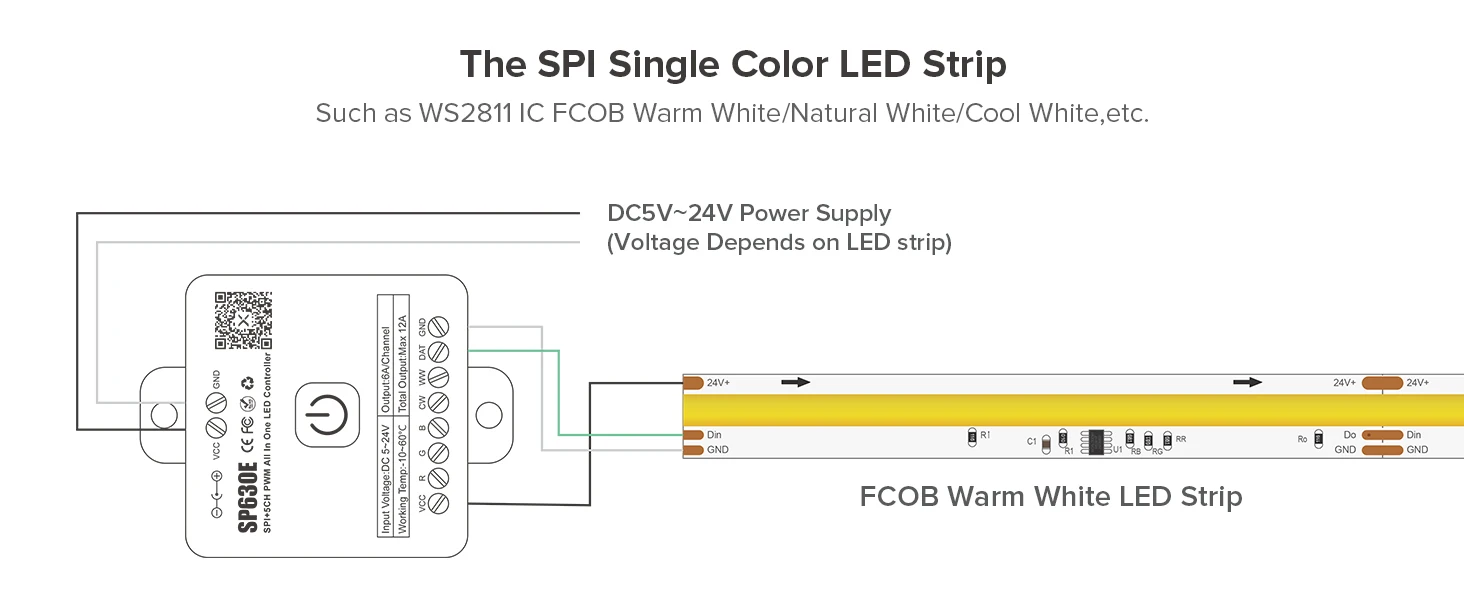

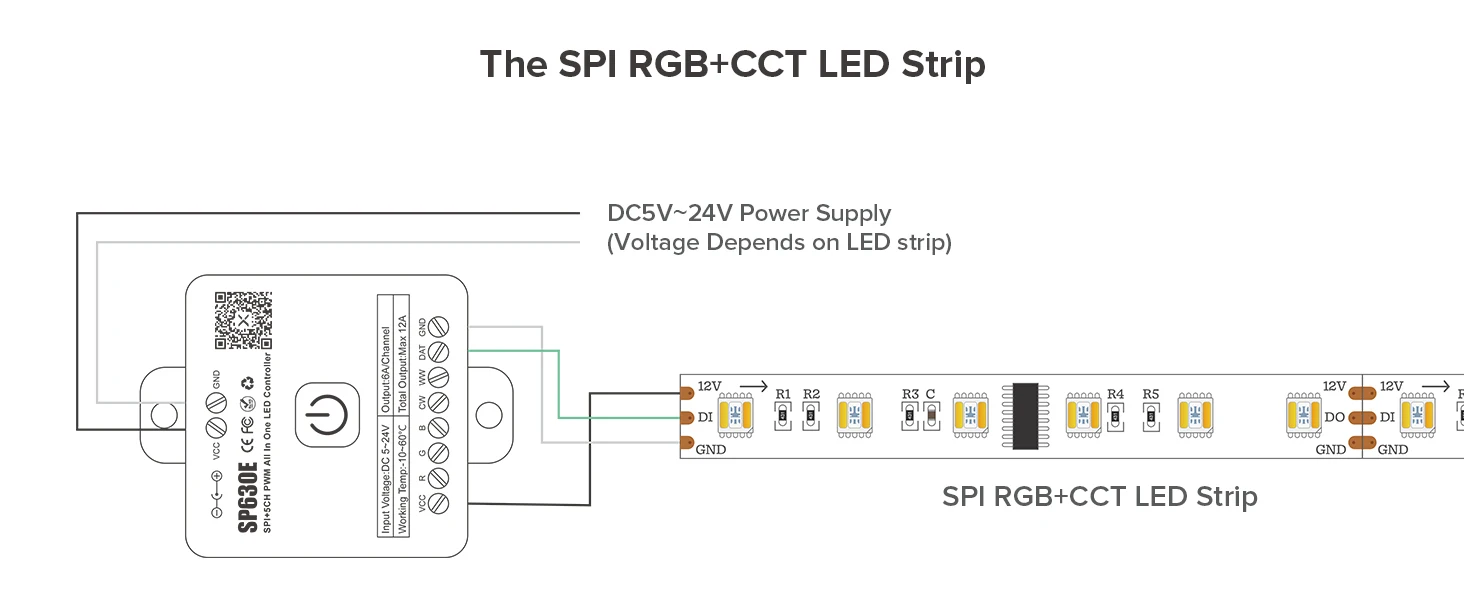

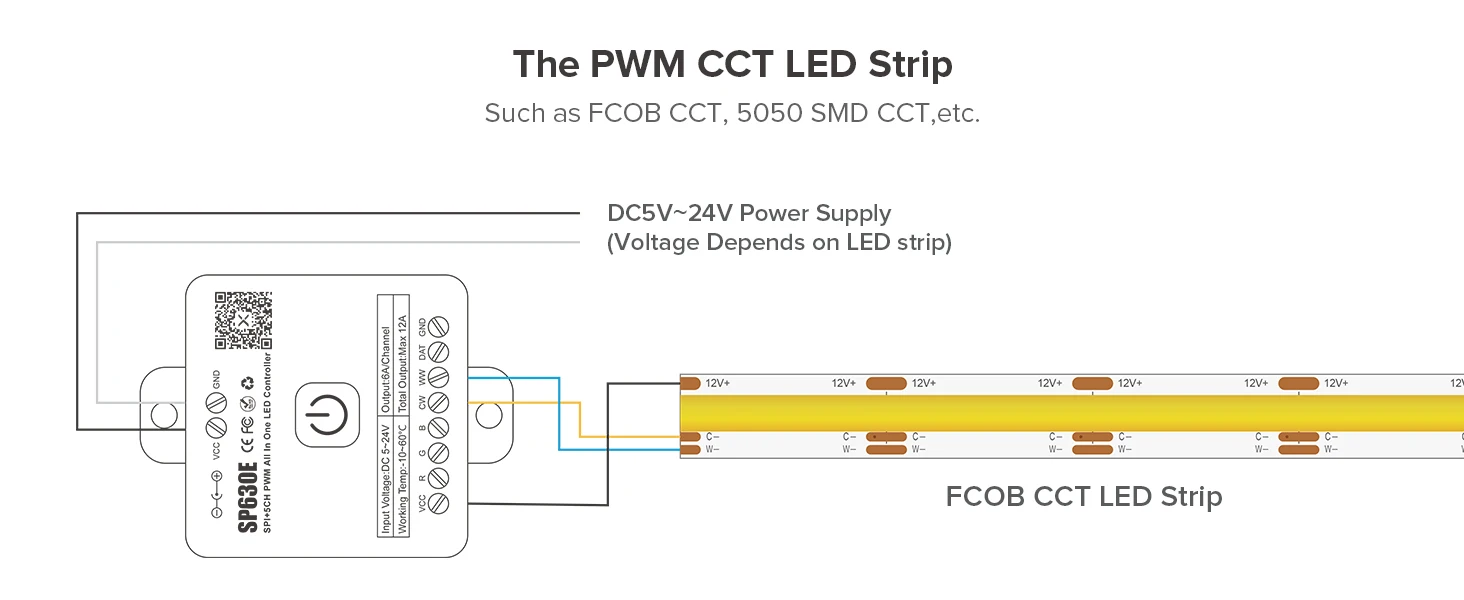

Difference between SPI (with IC) strips and PWM (without IC) strips.
Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.
| Color |

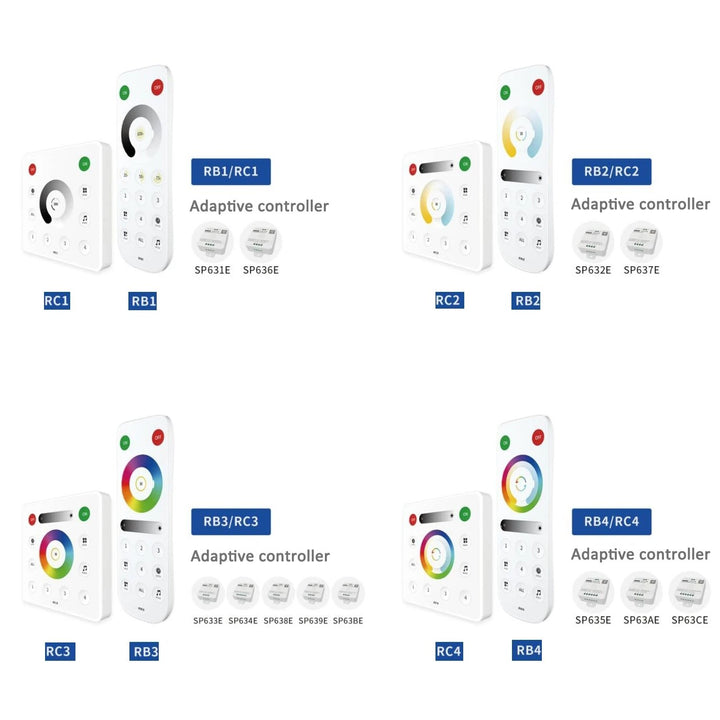

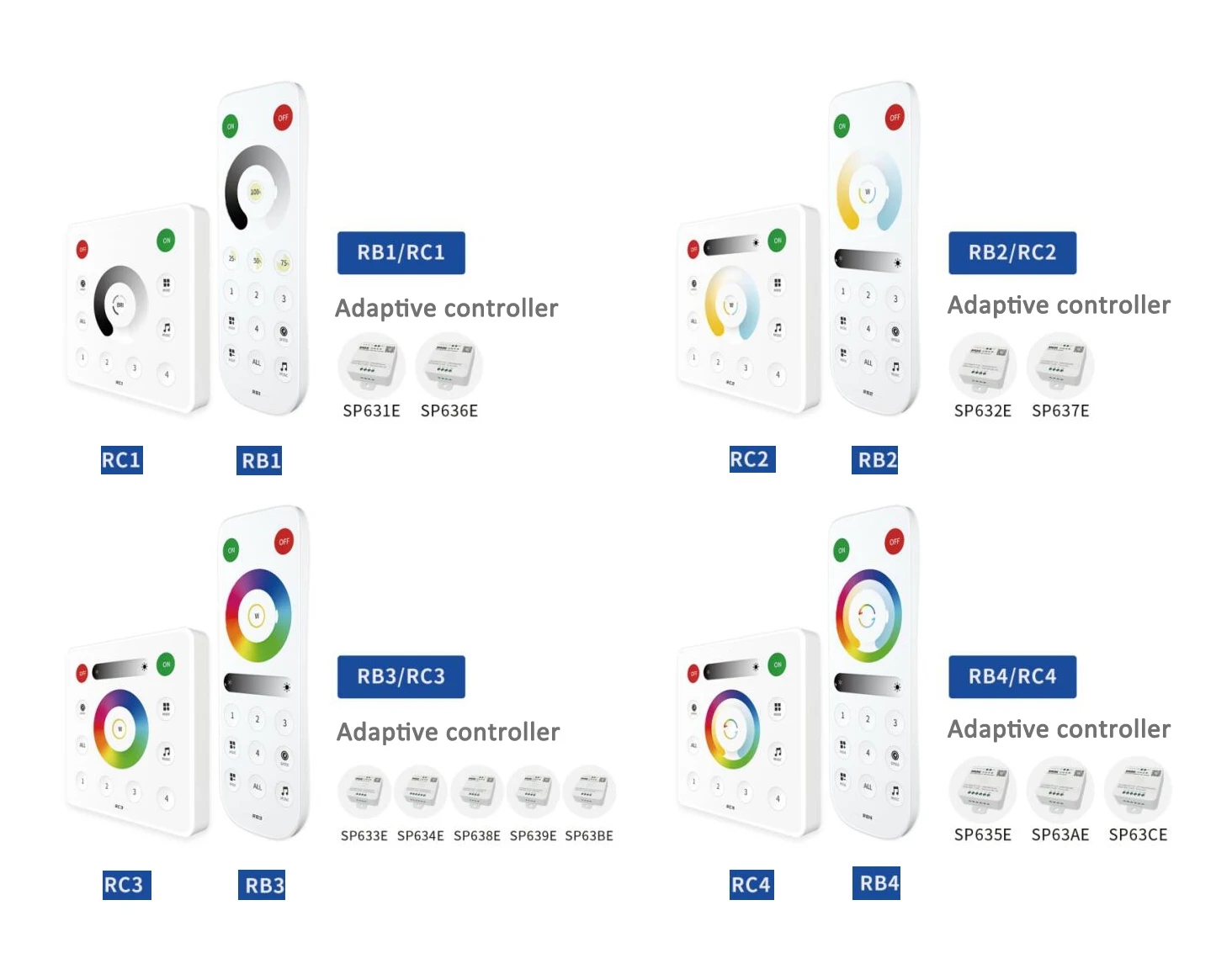

Only 1 Controller, 1 Controller 1 RB, 1 Controller 1 RC |
|---|---|
| Type |

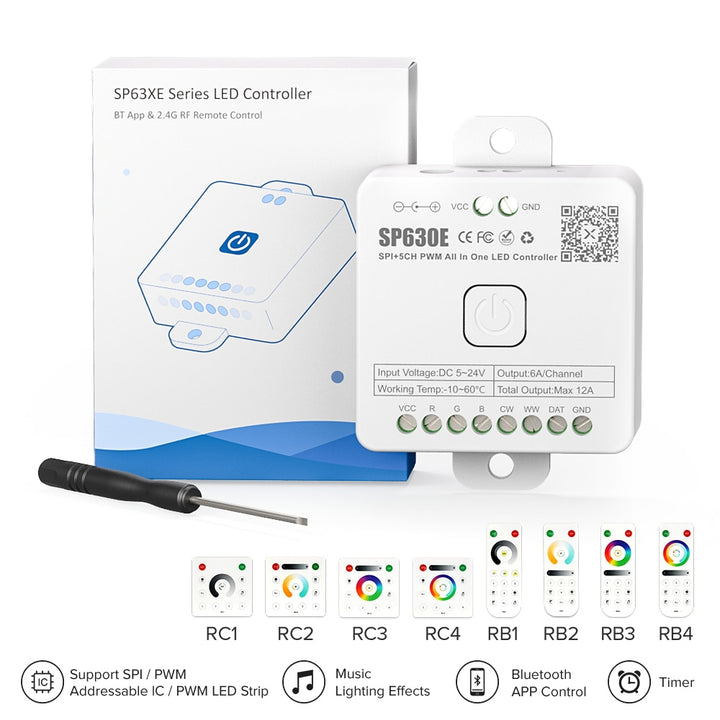

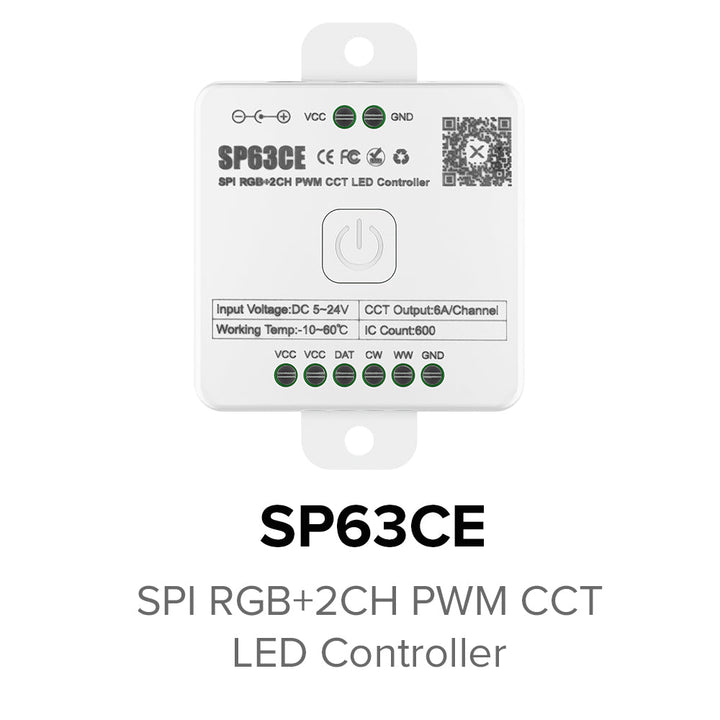

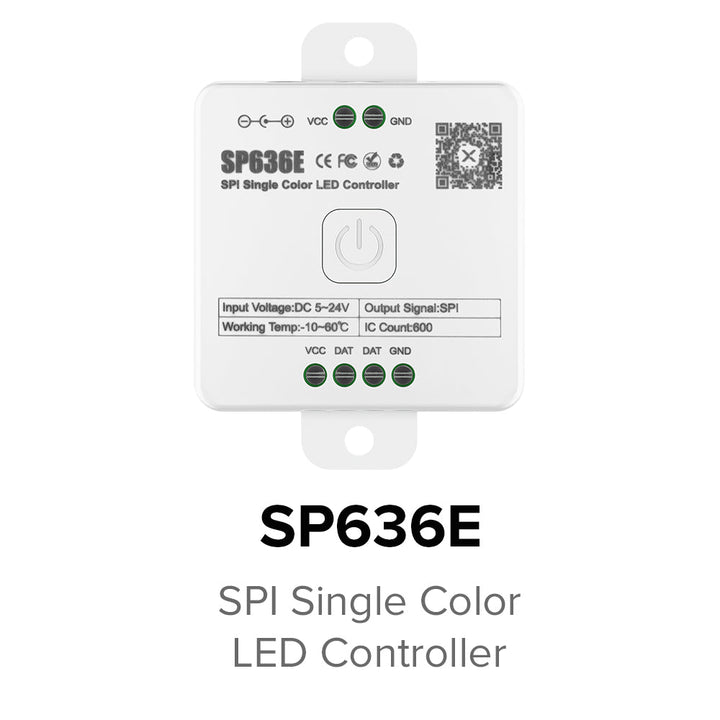

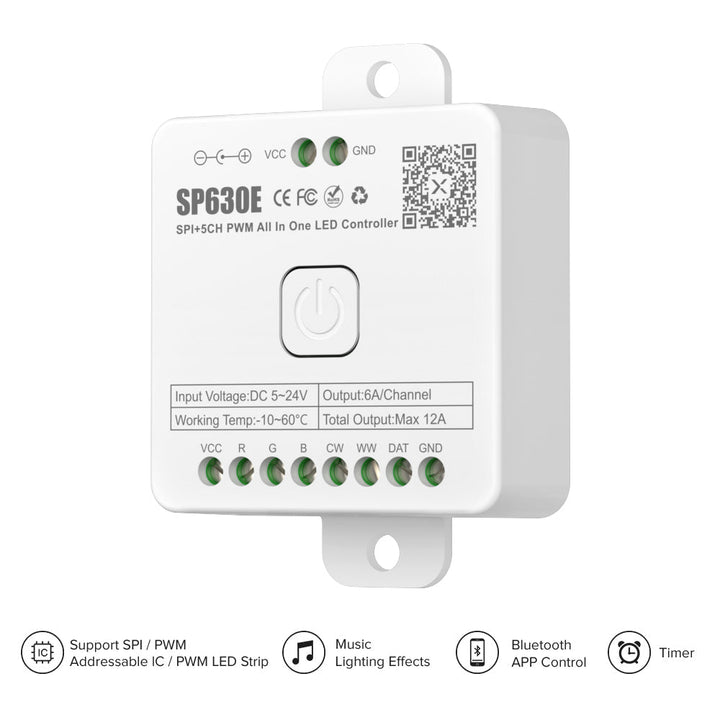

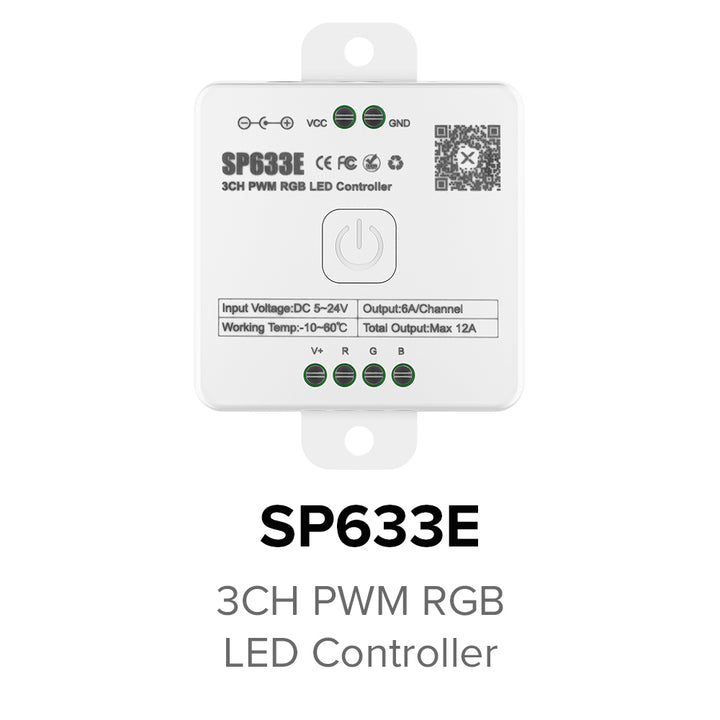

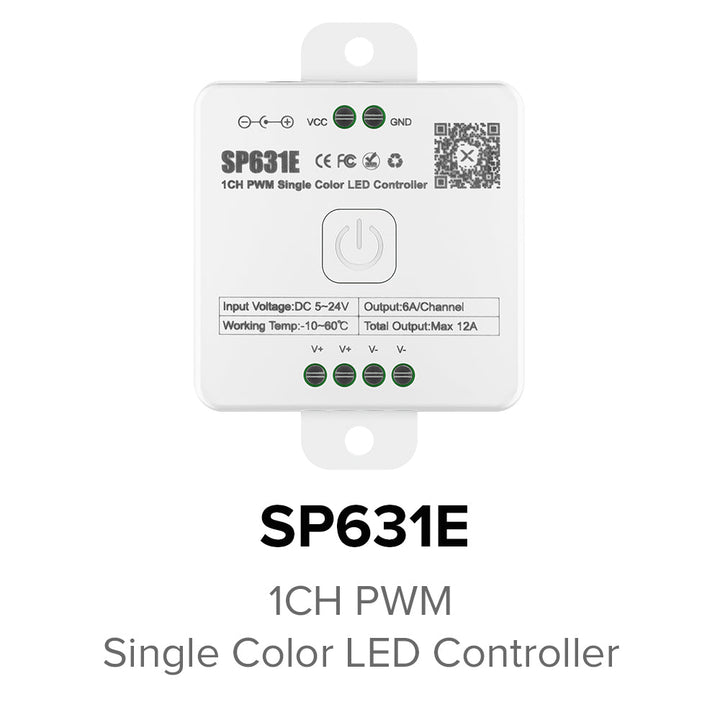

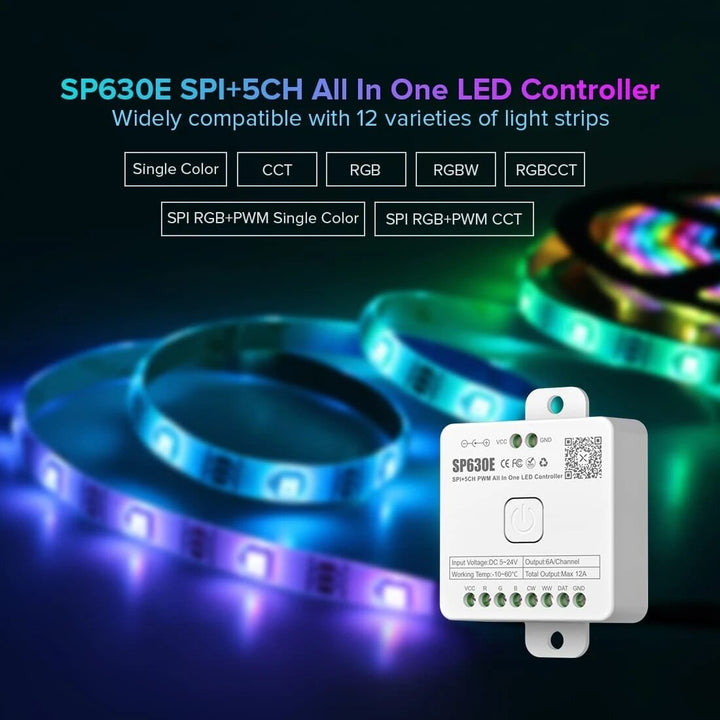

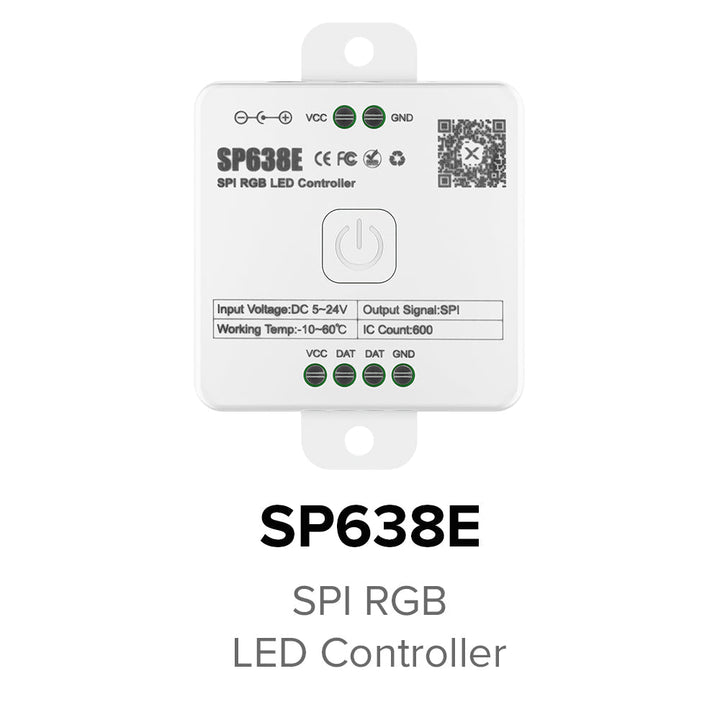

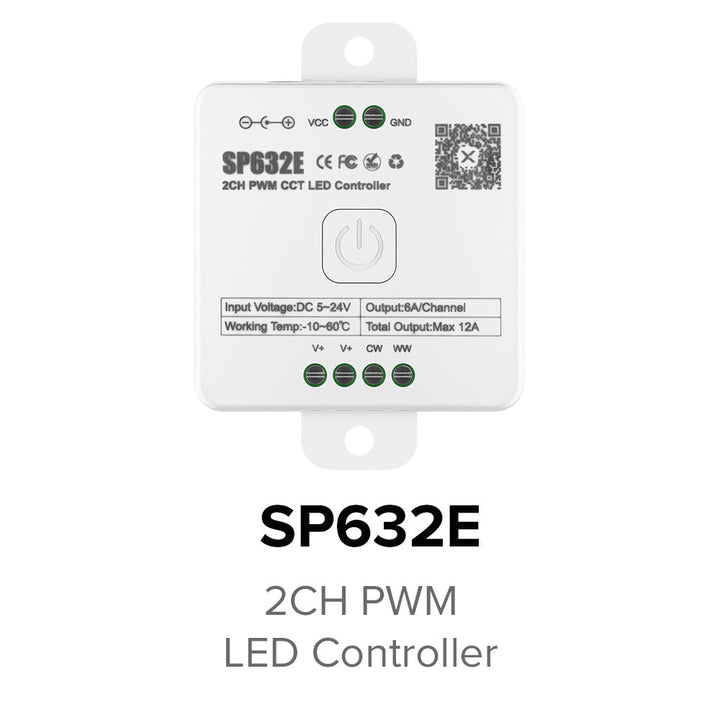

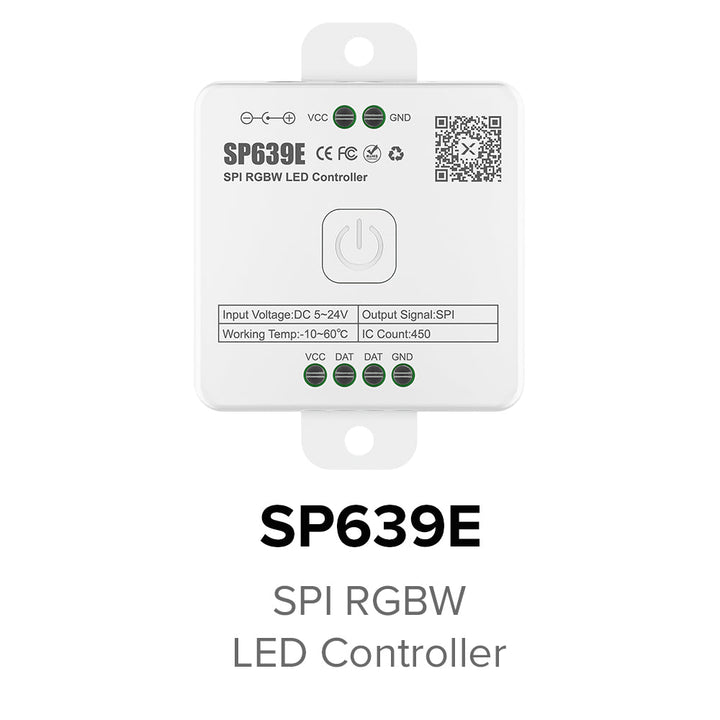

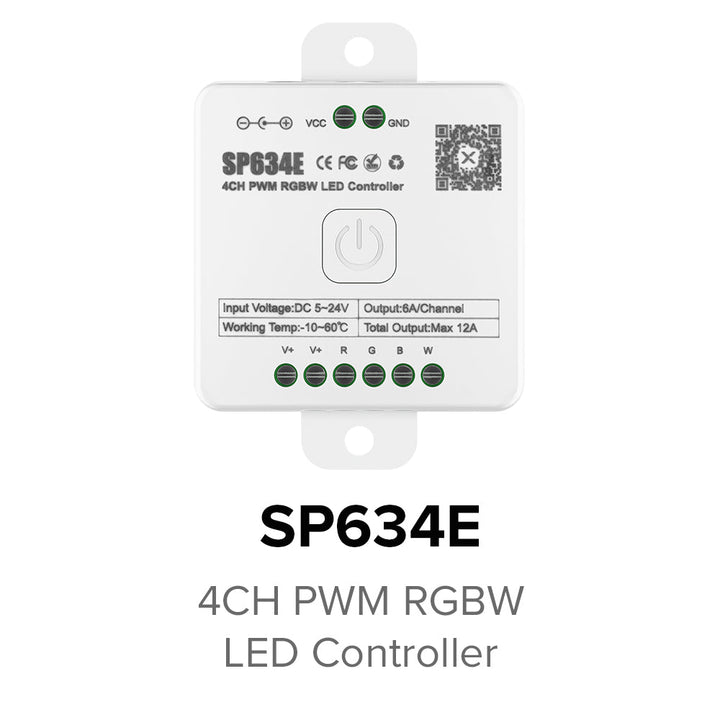

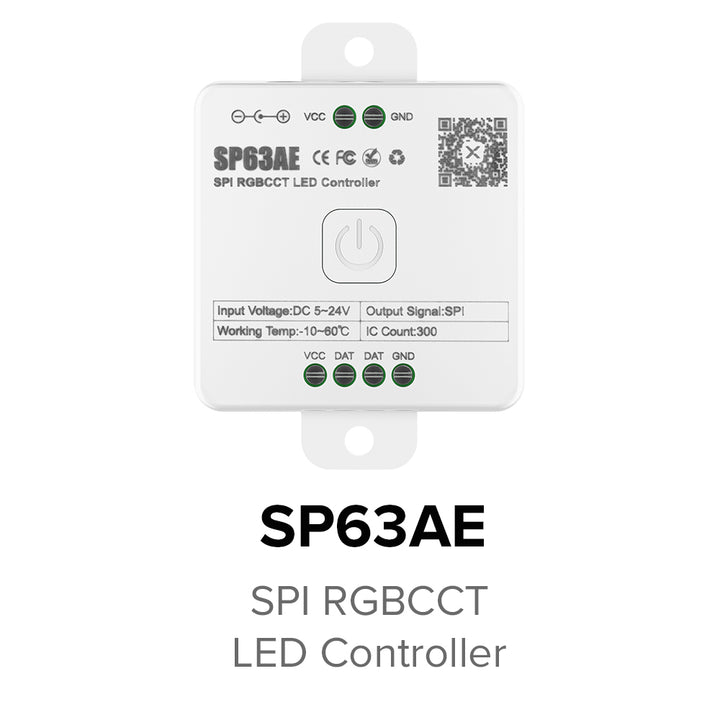

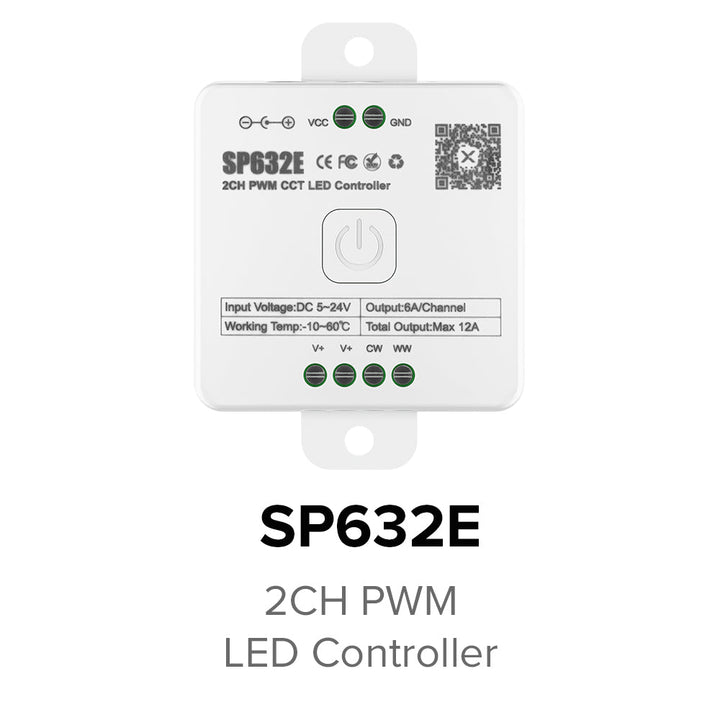

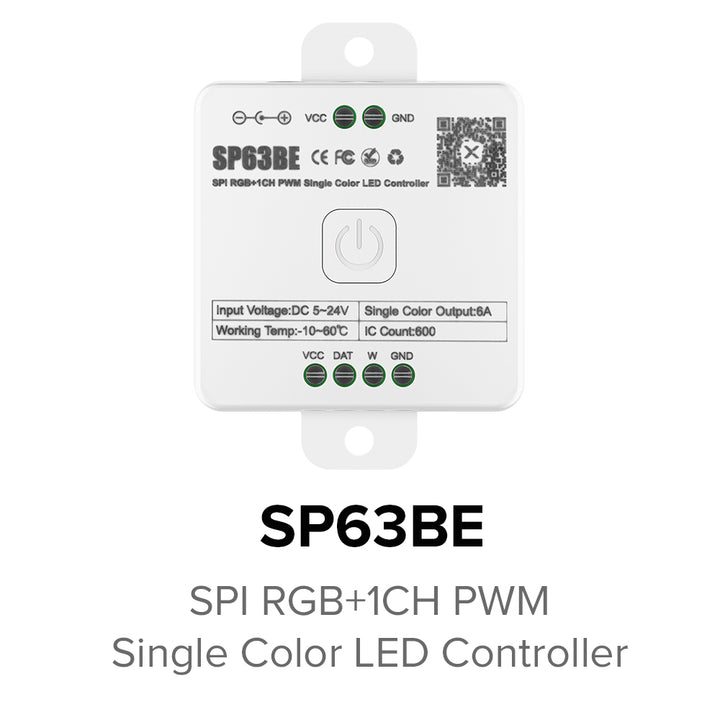

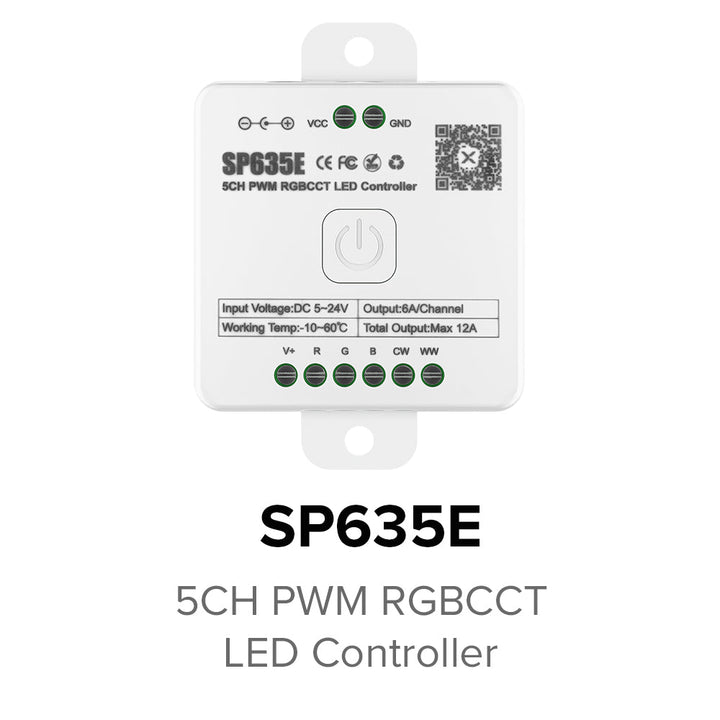

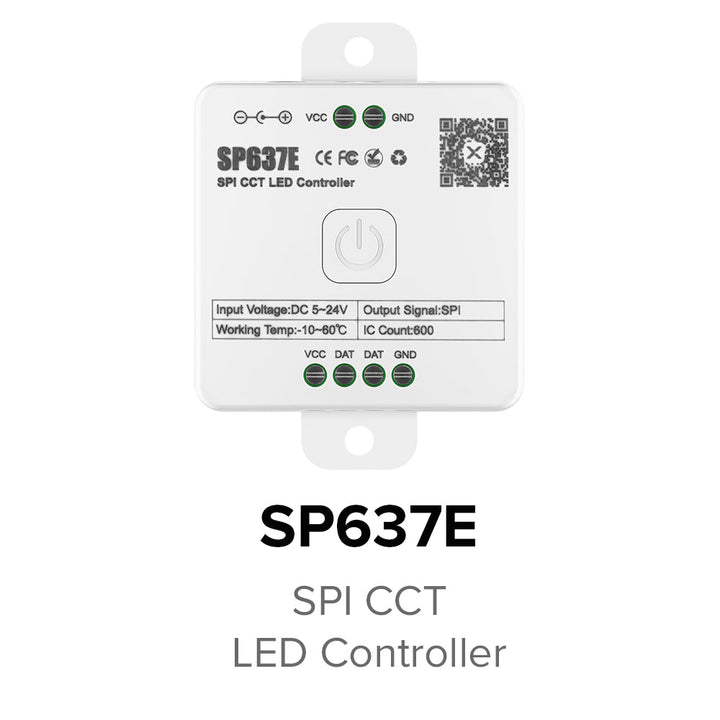

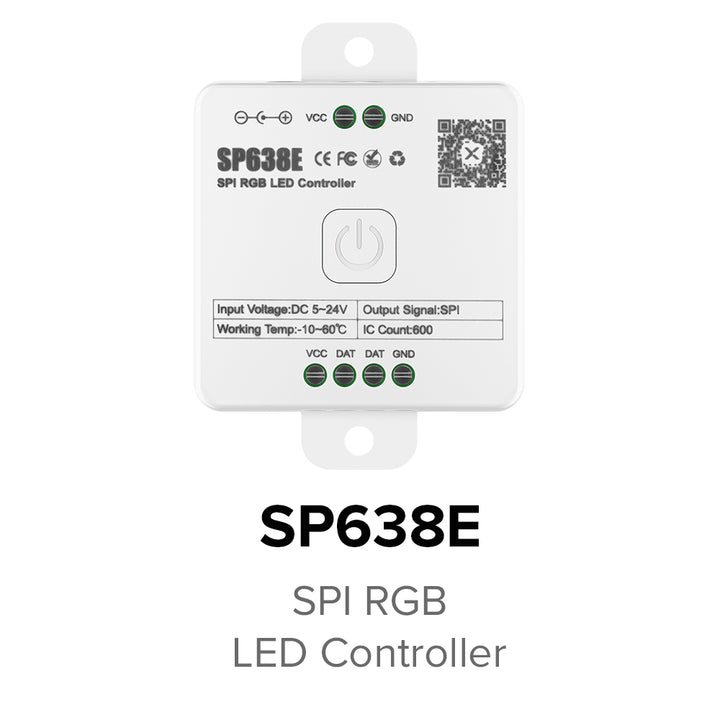

All In One SP630E, 2 Pin DIM SP631E, 3 Pin CCT SP632E, 4 Pin RGB SP633E, 5 Pin RGBW SP634E, 6 Pin RGBCCT SP635E, SPI DIM SP636E, SPI CCT SP637E, SPI RGB SP638E, SPI RGBW SP639E, SPI RGBCCT SP63AE, SPI RGB DIM SP63BE, SPI RGB CCT SP63CE |
