Notice: Customers should take care of the clearance and customs duties.
Features:

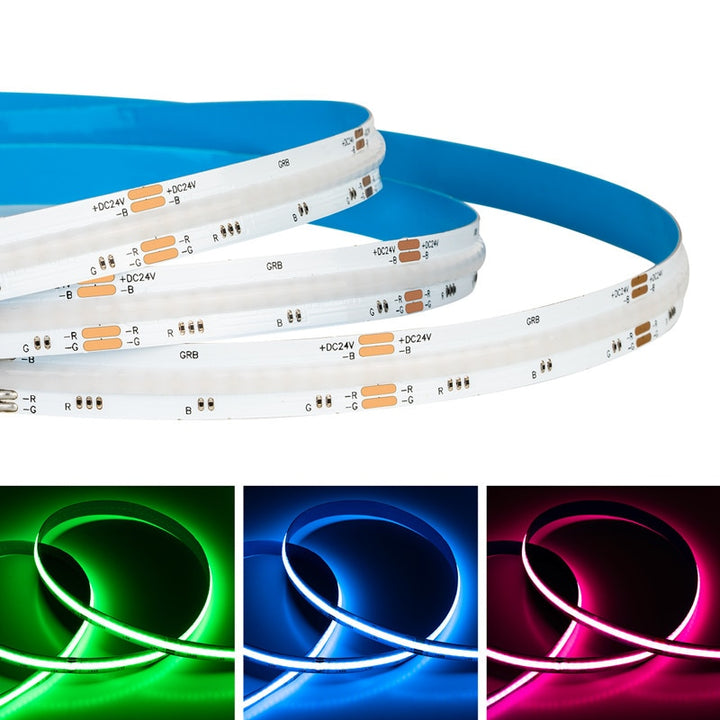

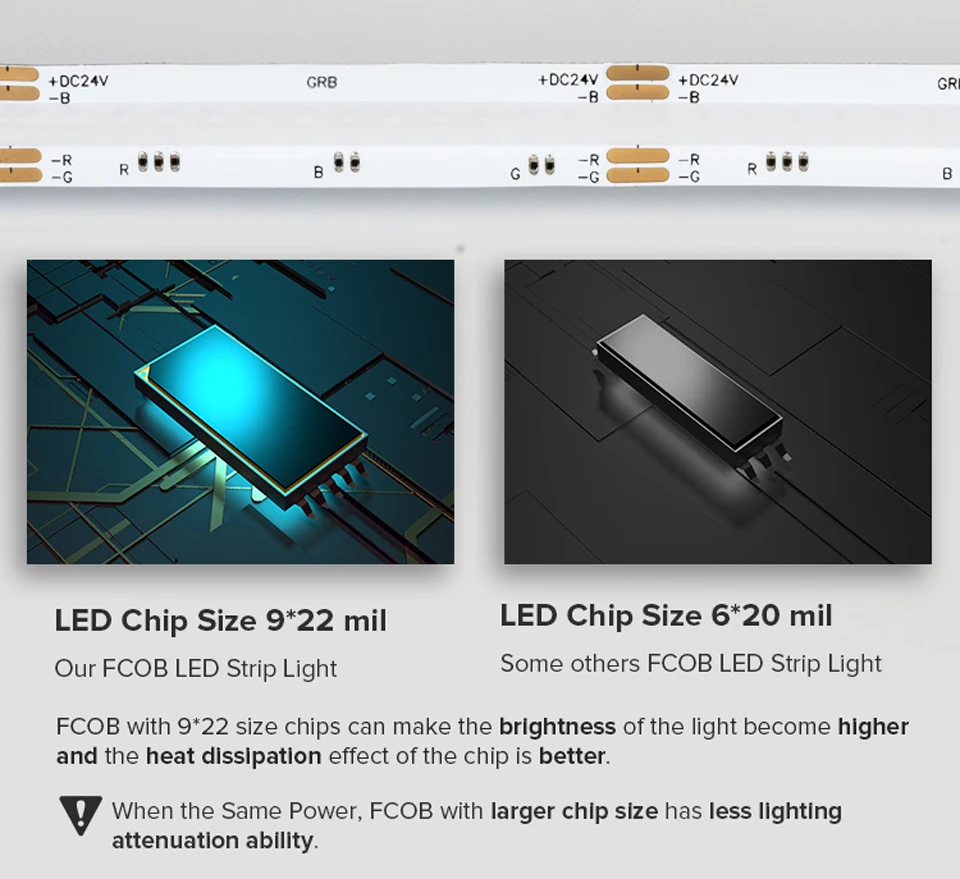

Using mini 0402 LED as light source, and glue on surface to make the lights more evenly and uniform.
Up to 810/840/896 LEDs each meter, only around 3.7-4.5mm distance between same color LEDs.
Double layer FPCB, balancing the voltage dropping, heat dissipation and flexibility.
Compatible with most of the RGB/RGBW controllers in the markets.
Applications, Residential lighting, decorative lighting.
This LED lights need work with RGB/RGBW controller.
Specification:
Input Voltage: DC12V / DC24V.
Wattage: 810leds-15W/M, 840leds-16W/M, 896leds-16W/M.

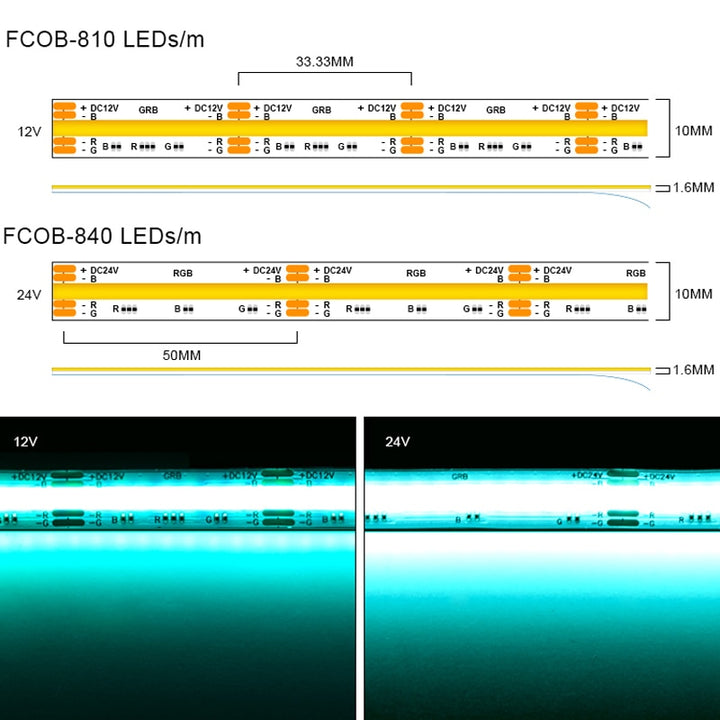

FPCB width: 810/840-10mm, 896-12mm.
FPCB height: 1.6mm.
LED quantity: 810LEDs/840LEDs/896LEDs/M.

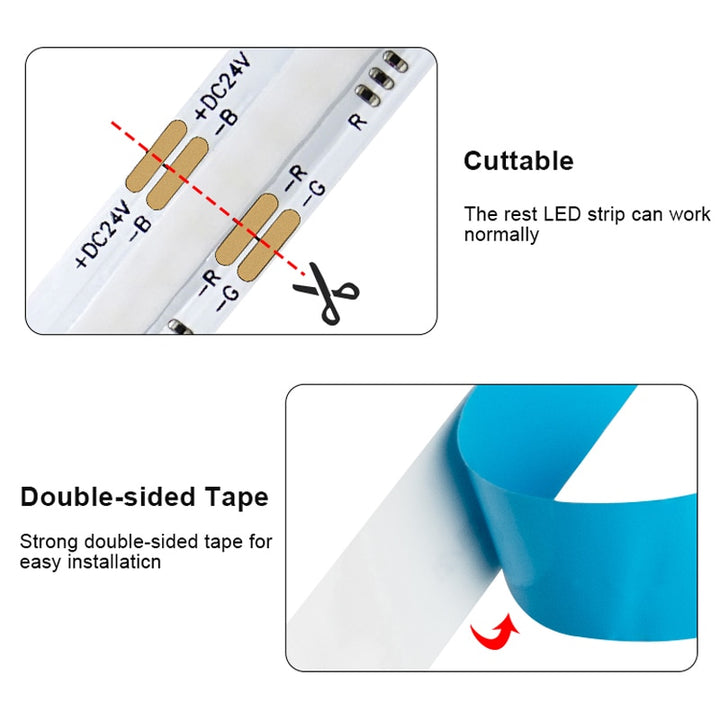

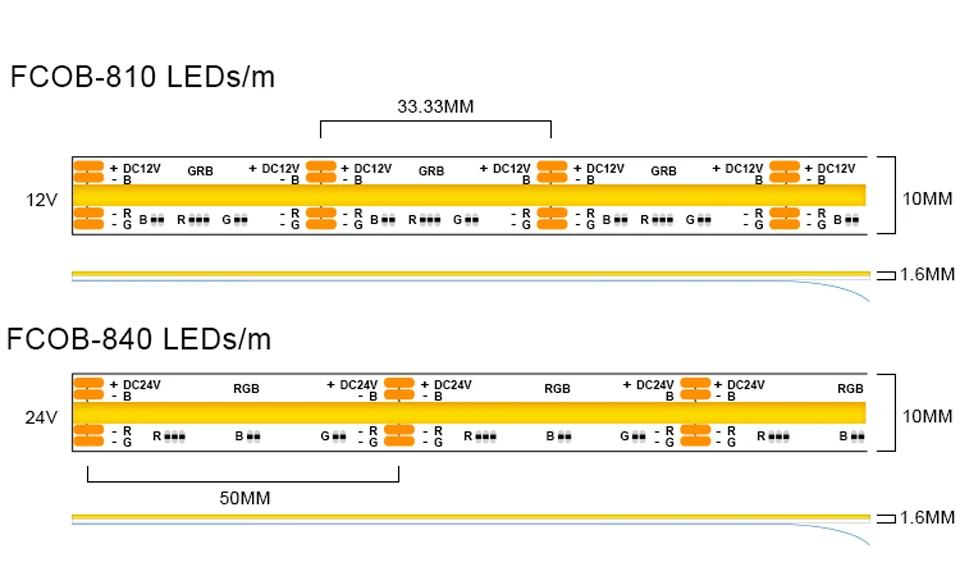

Cutting length: 810leds/m, DC12V- every 33.33mm. 840leds/m, DC24V-every 50mm. 896leds/m, DC24V-every 62.5mm.
Colors: RGB/RGBW, Any Colors Changeable.
Color Rendering Index: Ra>90.
Operation temperature: -20℃-+45℃.
Storage temperature: -20℃-+60℃.
View angle: 180°.
Package:

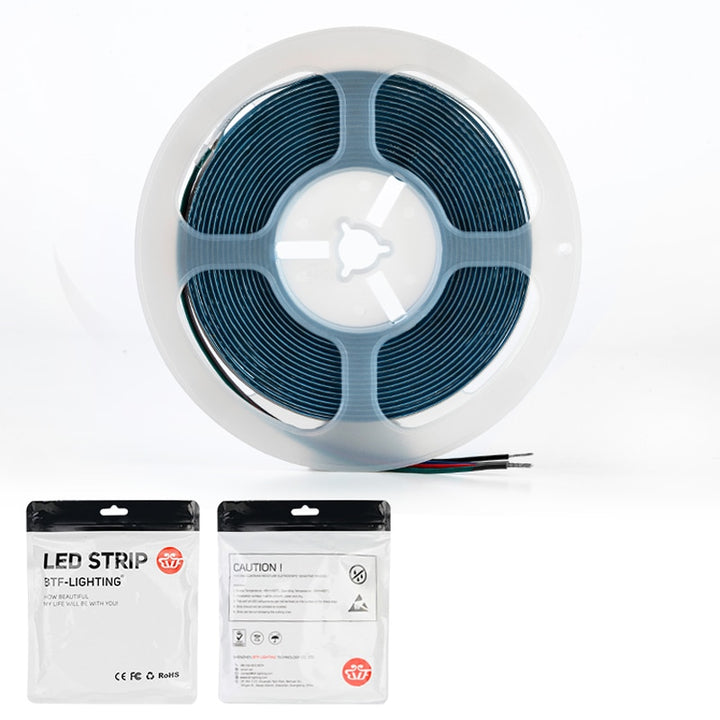

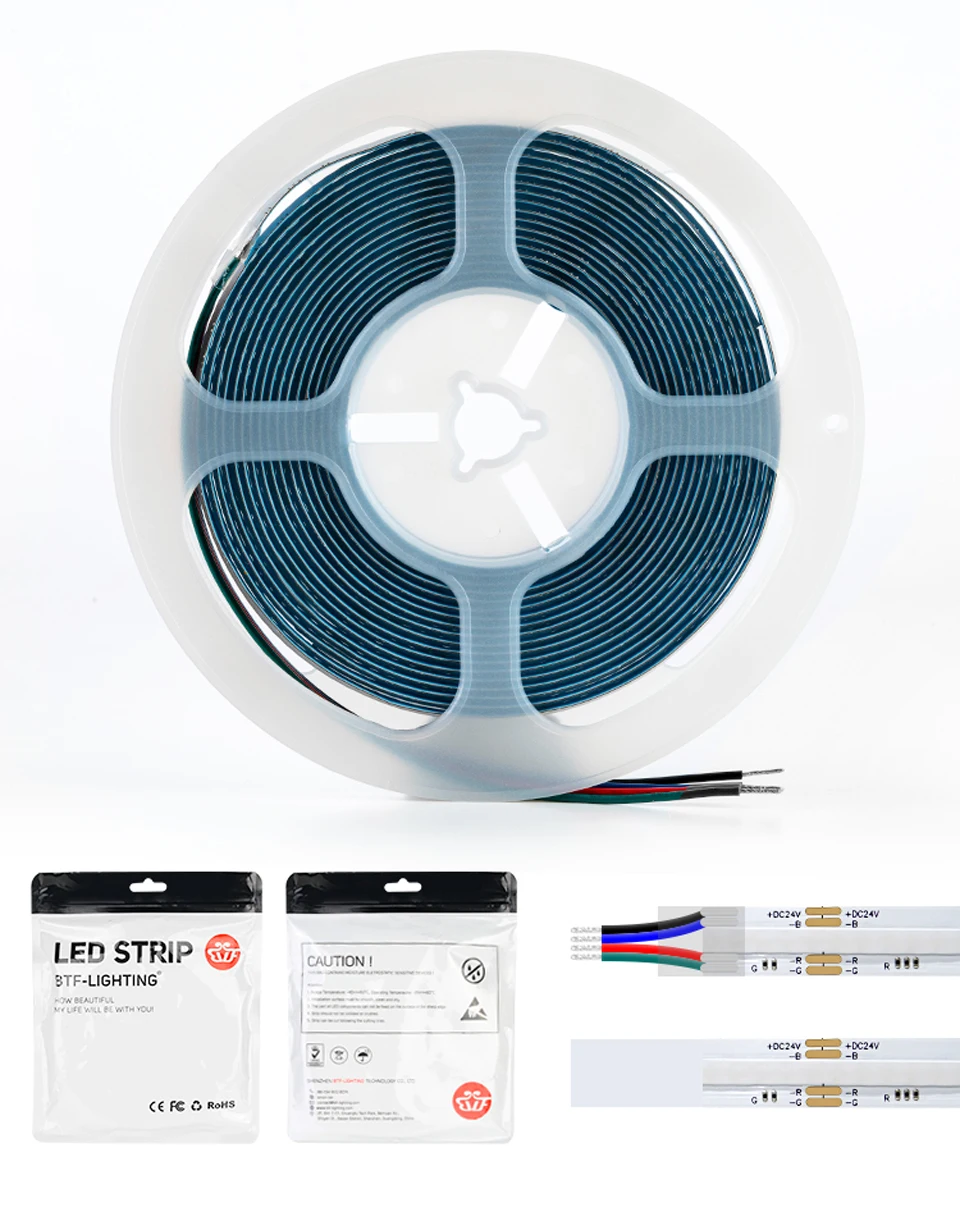

1 * FCOB RGB/RGBW LED strip ( power supply and controller is not included ).

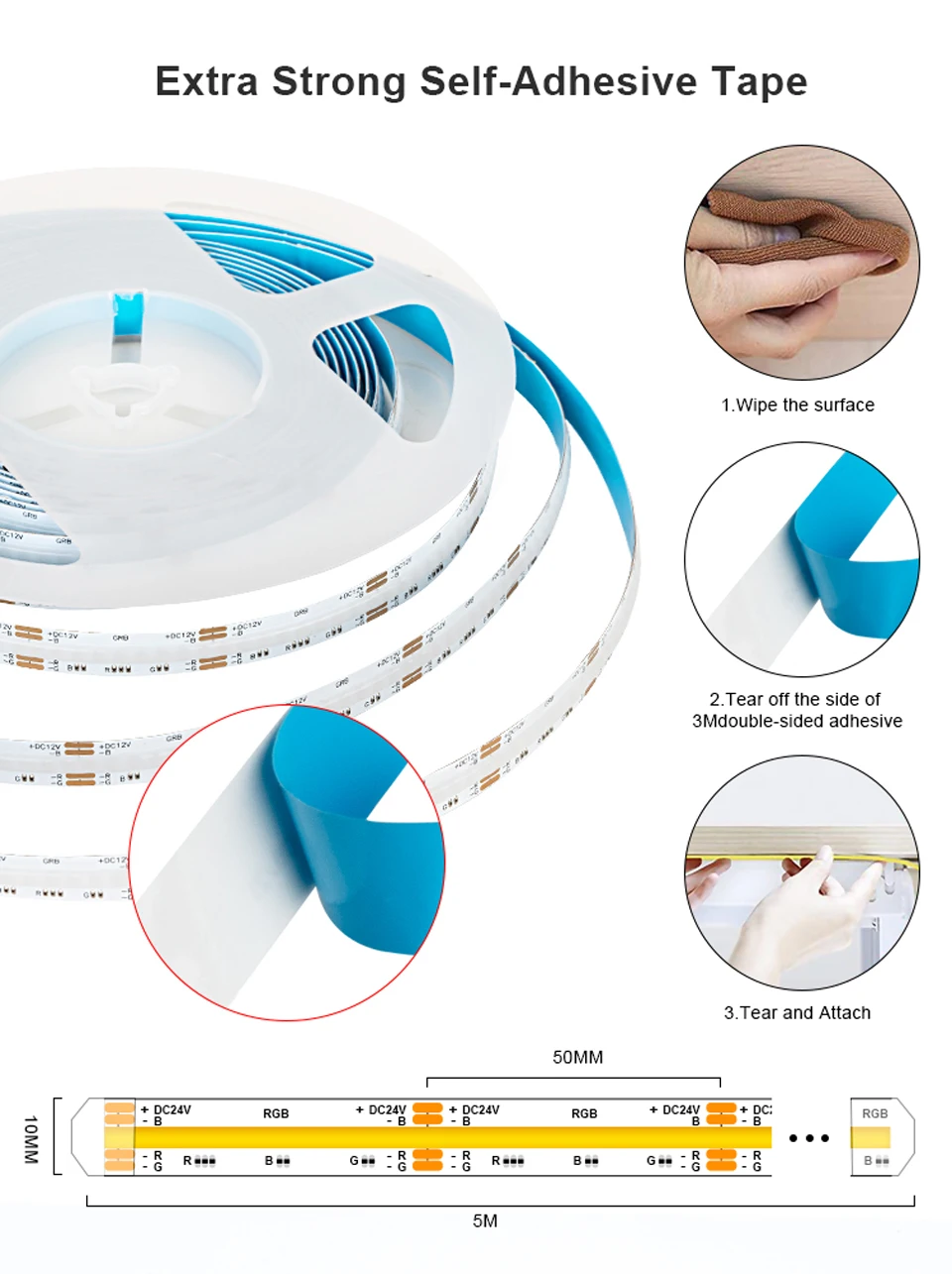

Installation Ways:
1, For powering on one side, the recommend running length is 5 meters, for over 6 meters please connect in parallel.
2, Make sure of the total watts of COB Strip lights is less than 80 of the power supply's max output.
3, Match the polarities according to the marks in the PCB while connecting.
Length |
12V 810LED RGB 10mm, 24V 840LED RGB 10mm, 24V 896LED RGBW 12mm |
---|---|
Type |
3m, 5m |
